Product Description
GUNNAR NOVEX MODULAR CUTTING PLATFORM. Ask us for a quote!
|
Product Code : GUNNAR NOVEX Availability : Low Stock |
|
GUNNAR NOVEX MODULAR CUTTING PLATFORM
MACHINE CHARACTERISTICS

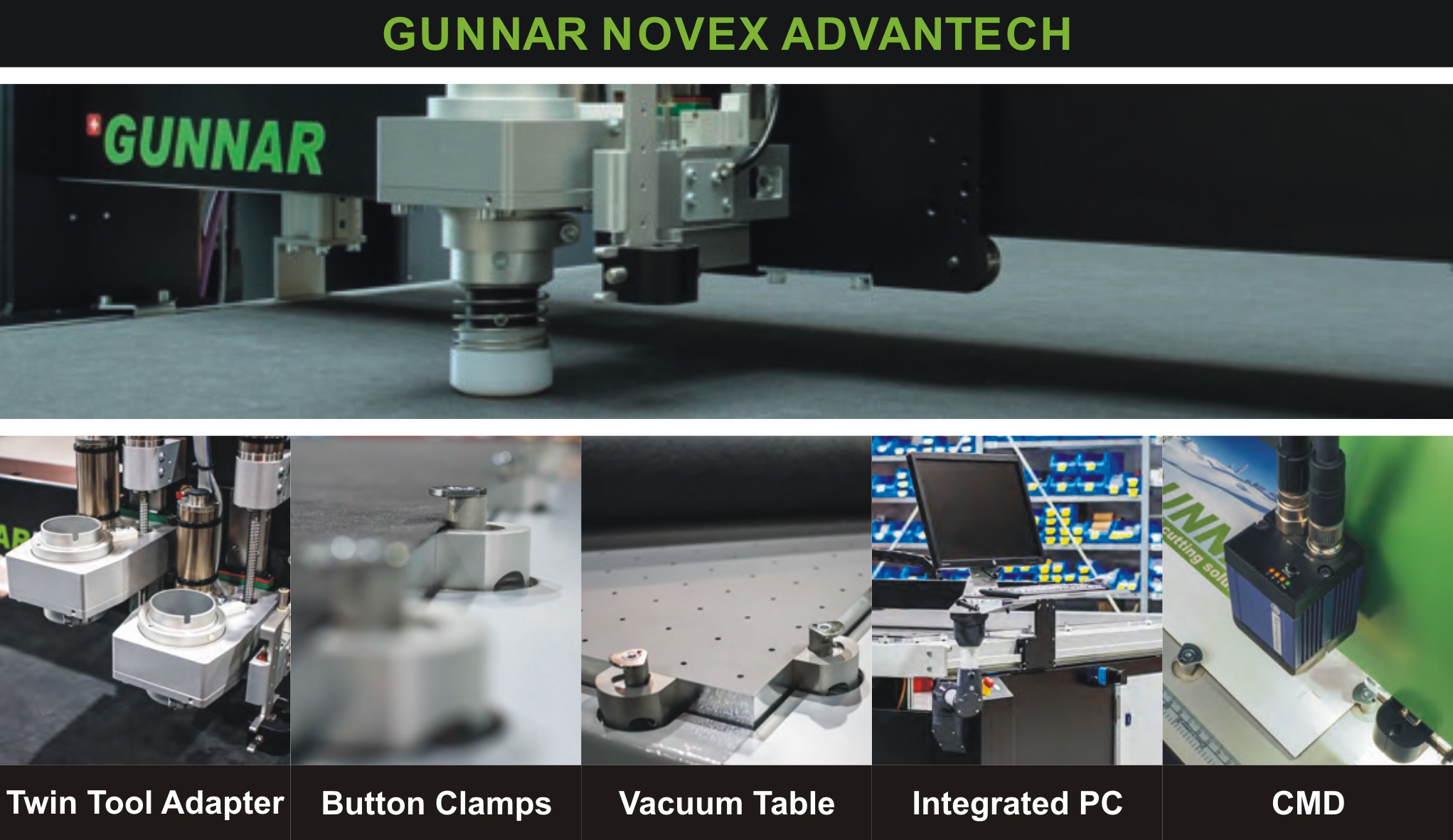

- Highly modular and upgradable machine and cutting tool concept
- Very compact and ergonomical cutter design
- Flexible tool adapter with easy to operate fast tool change system
- Very simple and fast blade change within seconds
- Fully dust protected control panel and electronics
- Front and back touchless, sensor based operator safety system
- Fully PC controlled operation with no extra additional operating panel
- CE certified
- High and constant cutting speed and acceleration
- Maintenance and service friendly
- Low operating and maintenance costs
- Compatible to a wide variation of data interchange formats
MAIN AREAS OF APPLICATION
- Picture Framing
- Wall Décor
- Museums
- Archival Solutions, Packaging
- Signage
MAIN TYPES OF MATERIALS
- Mat Board
- Foam, Foam Core, Dibond, Styrene
- Pre-printed Acrylic, Aluminum, Plastics, Coated Material
- Cardboard, Corrugate Board, Backboard, Honeycomb
- Canvas
BASIC CONFIGURATION OF ALL CUTTER MODELS
- Cutter operating software GMC GUNNAR MAT CREATOR
- Vacuum table
- Servo drive based 4-axis-control
- Fully digital bus based communication system
- Positioning laser
EXTENDED CONFIGURATION OPTIONS FOR ALL CUTTER MODELS
- Integrated PC screen holder with standard VESA mount
- Integrated IP67 19" touch based PC operation centre
- Universal clamping tool holder for marking tools UTH
- GUNNAR CMD crop mark detection unit
- Dynamic frequency transformer based vacuum system
SELECTED TOOLS FOR ALL CUTTER MODELS
- 45° Bevel Cut Tool
- 90° Straight Cut Tool
- Electrical driven oscillation tool EOT
- Electrical driven rotation tool ERT
- Routing tool head
MAIN OPERATING FIGURES OF ALL CUTTER MODELS
- Max cutting speed 1,500 mm/s
- Max positioning speed 2,000 mm/s
- Max acceleration 10 m/s2 (1G)
- Positioning accuracy +/- 0.1mm
- Overall max material thickness/clearance 25mm
