- BRJAGUAR: Brevetti Jaguar Double Mitre Saw. Made in Italy. Ask us for a quote!
Product Description
BRJAGUAR: Brevetti Jaguar Double Mitre Saw. Made in Italy. Ask us for a quote!
|
Product Code : BRJAGUAR Availability : Low Stock Manual : Video : BRJAGUARVIDEO.mp4 |
|
Brevetti Jaguar Double Mitre Saw. Made in Italy.
Main Characteristics:
- Pneumatic double mitre sawing machine, for "V-cutting" at 45 degrees, at both ends, in wooden mouldings of any shape and kind (all woods - aluminium covered, etc.).
- Precise graduated scale to gauge at the rebate of the mitred mouldings, right sliding stop and vertical pneumatic clamps with fixed fence.
- Maximum operator safety.
- Sound level: LAeq > 85 dB (A).
- Arranged to be connected to a suction unit with minium delivery of 700 m3/h for each exhaust outlet.
- Saws: 2 circular carbide saw blades of ø 275mm (10-7/8") diameter, bore size ø 32mm (1-1/4").

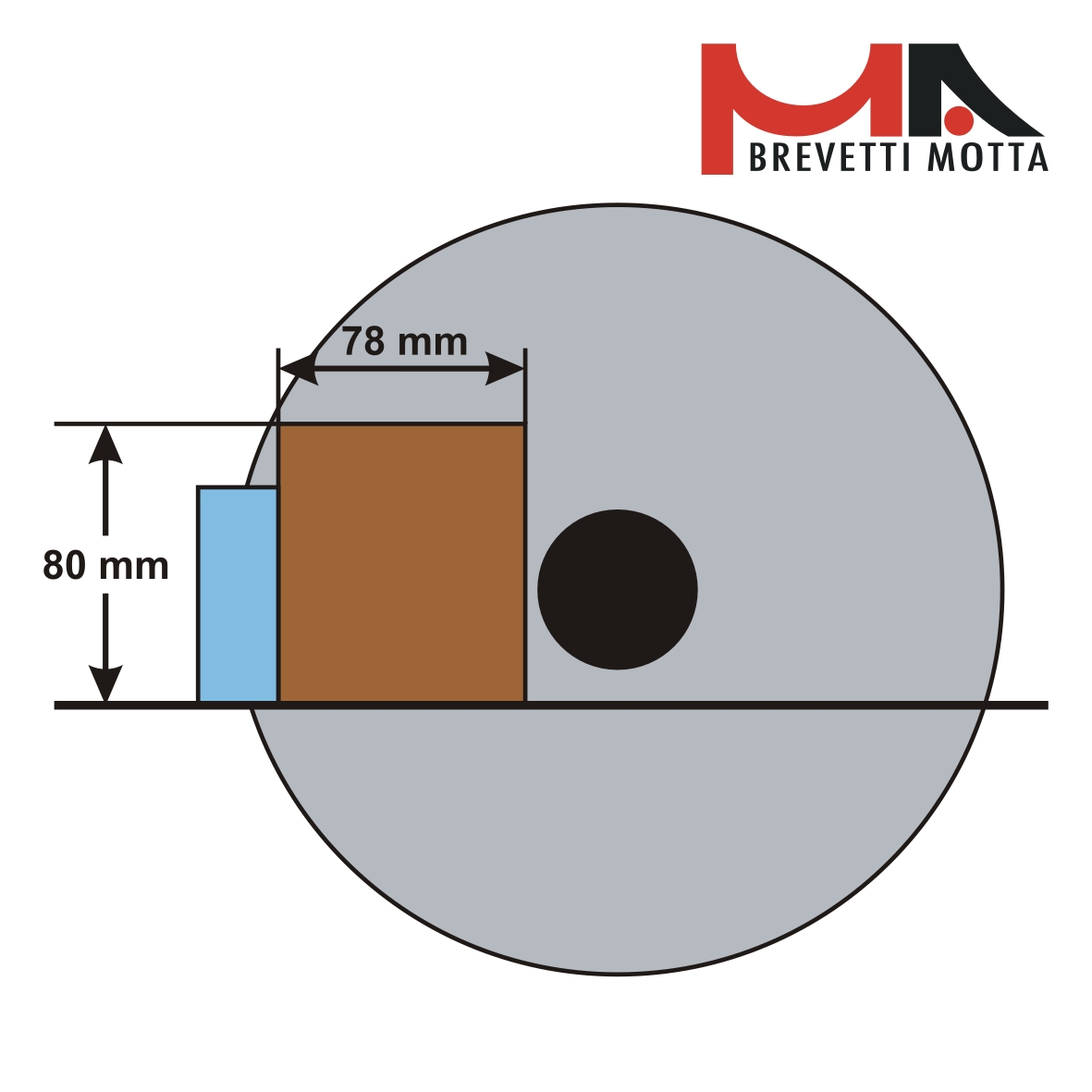

- Maximum cutting capacity: width 70mm (2-3/4") height (3-15/16").
- Production rate: about 200 cuts per hour (it varies with mouldings dimensions).
- Standard electrical equipment: 2 motors of 1.5 Hp each; Voltage 400/440 V; 50/60 Hz; 2800 RPM; 3 Phase. On request machine can be supplied with electrical equipment according to local voltage and hertz. In this case electrical characteristics change.
- Electric consumption max. 3 Kw. (single phase on request).
- Sawdust exhaust outlets: 2 x 100mm (3-15/16") diameter.
- Overall dimensions and weight: width 880mm (34-5/8"); length 1130mm (44-1/2"); height 1380mm (54-3/8"); weight 240 kg (529 lbs).
Particularly suitable for woodworking shops and custom picture frames.
