BRPRISMACE: Brevetti Prisma CE Double Mitre Saw. Ask us for a quote!
|
Product Code : BRPRISMACE Availability :
Manual : Video : BRPRISMACEVIDEO.mp4 |
|
Brevetti Prisma CE Double Mitre Saw. Made in Italy.
- 2 saw blades type HM d. 250mm, size bore d. 32mm.
- 2 mouldings supporting arms l=750mm (1 right, 1 left).
- Adhesive measuring system l=1000mm.
- Right sliding stop.
- Mechanical horizontal clamps.
- Possibility to use saw blades d. 275mm.
Main Characteristics:
- Manual sawing machine with pneumatic horizontal stroke for "V-cutting" at 45 degrees at both ends in mouldings of any shape and kind.
- Possibility to use saw blades from 250mm (9 7/8") up to 275mm. (10 7/8").
- Precise graduate scale to gage at the rebate of the mitred mouldings, right sliding stop and mechanical horizontal clamps with fixed fence.
- Digital readout as optional (T024).
- Maximum operator safety.
- Sound level: LAeq> 80 dB (A).
- Arranged to be connected to a suction unit with minimum delivery of 700m3/h for each sawdust exhaust outlet.
- Saws: 2 circular caribe saw blades of ø 250mm (9 7/8") size bore ø 32mm (1 1/4").

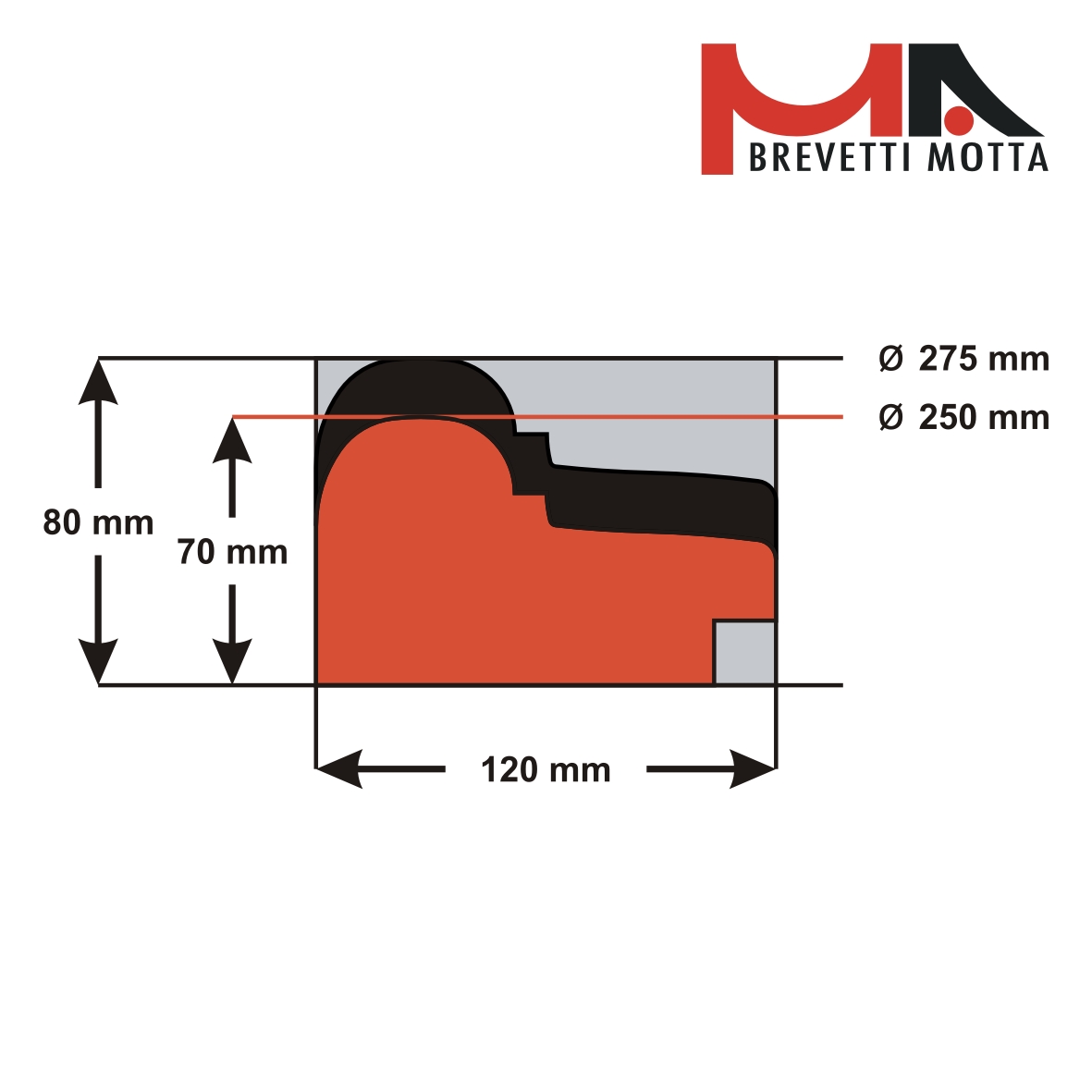

- Max. cutting capacity: see cutting diagram.
- Production rate: About 200 cuts per hour (it varies with mouldings dimensions).
- Standard electric equipment: 2 motors of 1,5 Hp each 2800 RPM; Voltage 230 V- 50 Hz-1 Ph. On request machine can be supplied with electric equipment according to local voltage and hertz. In this case electric characteristic change.
- Electric consumption max. 2,2 Kw. (3 phase available on request).
- Sawdust exhaust outlets: N. 2, diameter 100mm. (3 15/16").
- Overall dimensions and weight: width 1180mm (46 1/2"); length 670mm (26 3/8"); height 1100mm (43 1/4"); 165 kg (363 Ibs).
Particularly suitable for medium and small production of frames.
